Medical Purified Water Equipment
GMP-oriented purified water systems for pharmaceutical plants, hospitals, dialysis centres and medical devices.
- Capacity
- 0.25 – 30 T/H
- Outlet Quality
- Compliant with ChP / USP / EP purified water monographs
Medical purified water equipment is designed and documented for pharmaceutical production, hospital central supply, haemodialysis centres and medical device manufacturing, where water quality is directly linked to patient safety.

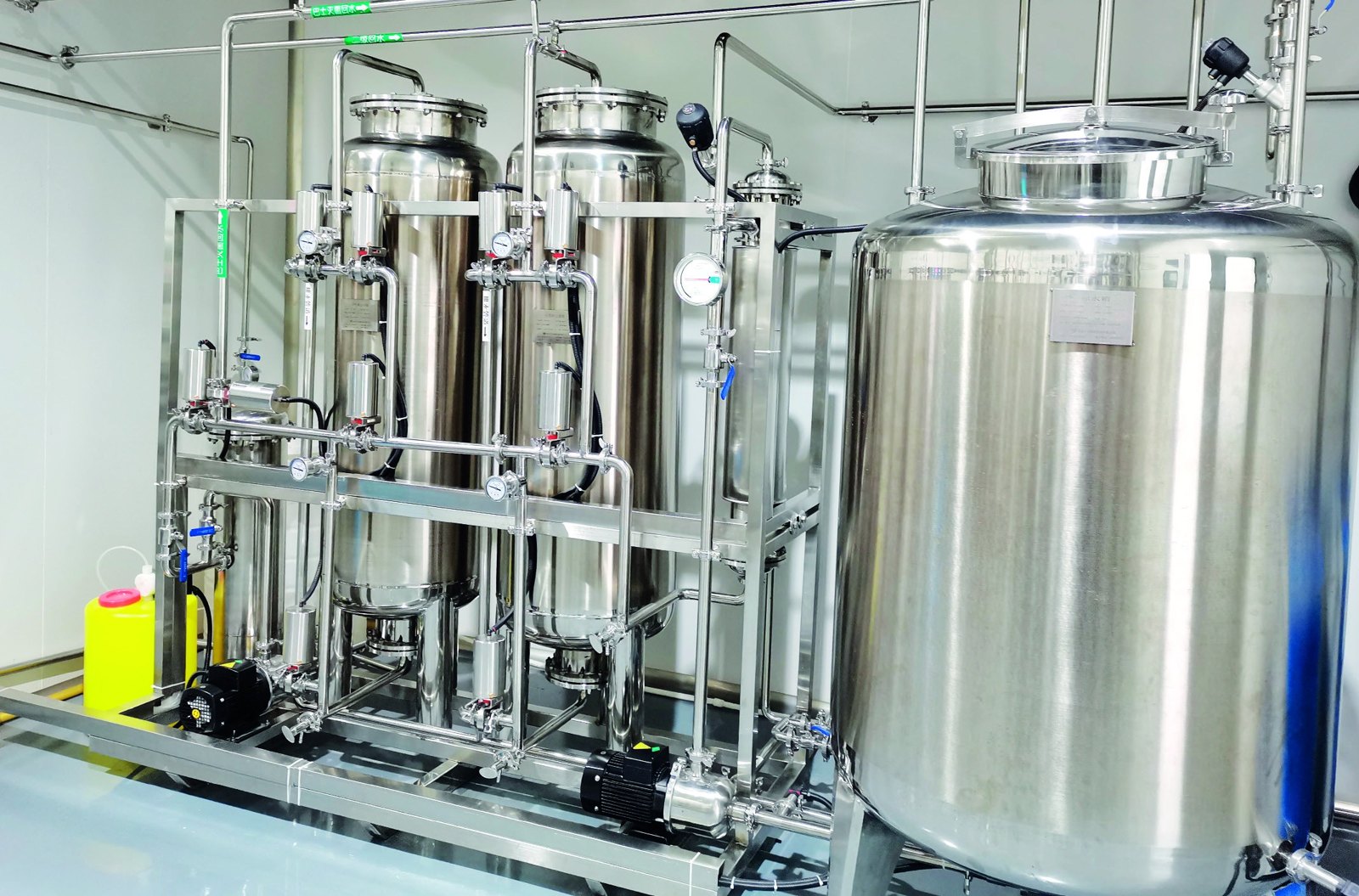

The full system uses 316L sanitary stainless steel with orbital welded, fully drainable pipework and no dead legs. Storage tanks are fitted with sanitary breather filters and spray balls; the distribution loop runs continuously with UV sterilisation and can be sanitised by hot water or ozone.
We supply an accompanying documentation package — P&ID, material certificates, welding records, surface finish reports and IQ/OQ templates — to support GMP inspection and validation.
Key Features
Why This System Performs
Sanitary design
316L mirror-polished internals, orbital welding, zero dead legs and full drainability throughout the loop.
Sanitisation ready
Hot water sanitisation up to 85 °C or ozone sanitisation with UV destruction is available as standard options.
Validation support
Complete documentation set including material and weld certificates plus IQ/OQ/PQ templates for GMP audit.
Continuous circulation
Loop velocity above 1 m/s with online conductivity and TOC monitoring prevents stagnation and microbial growth.
Process

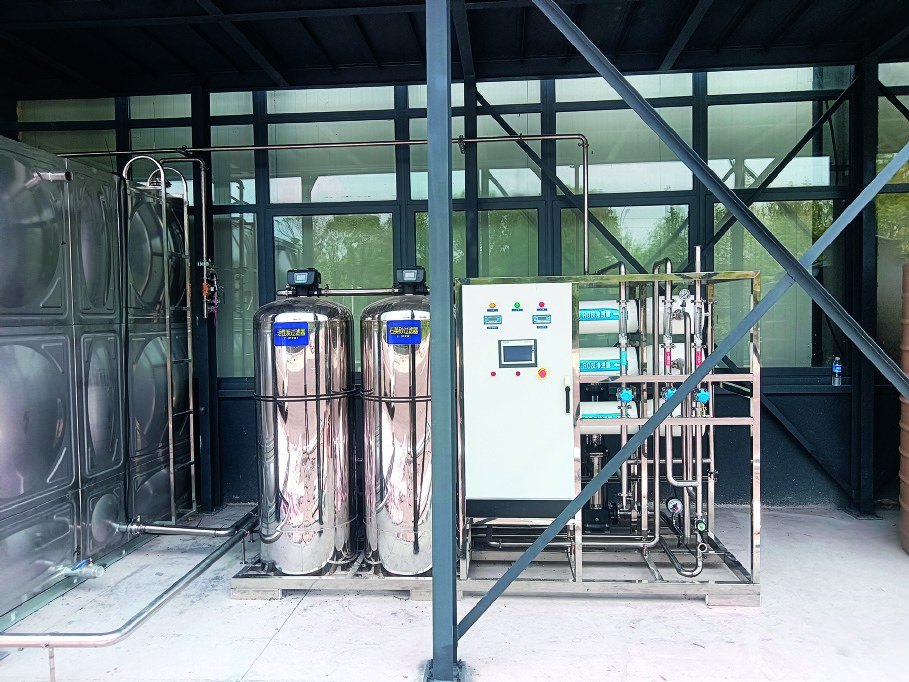

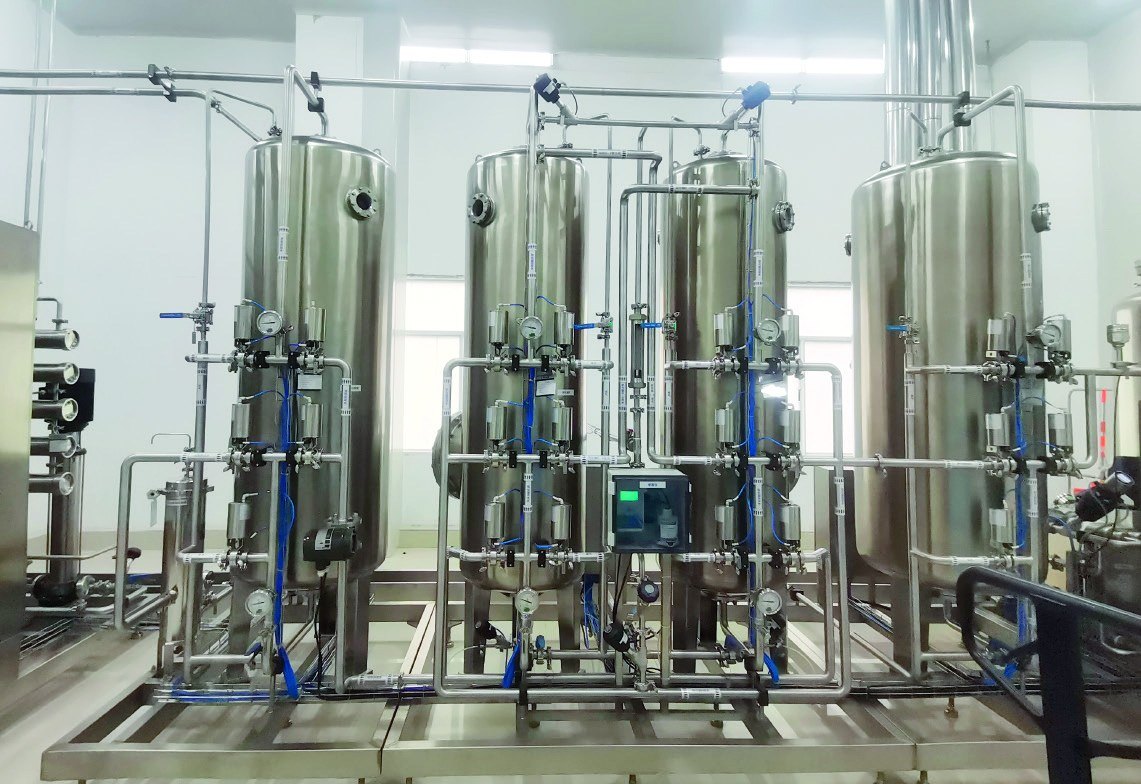

Typical Process Flow
- 01Raw water tank + booster pump
- 02Multi-media filter
- 03Activated carbon filter
- 04Softener
- 05Security filter 5 μm
- 06First-stage RO
- 07Second-stage RO / EDI
- 08Purified water storage tank (with breather filter)
- 09Distribution pump + heat exchanger
- 10UV sterilizer + 0.22 μm terminal filter
- 11Sanitary circulation loop to points of use
Specifications
Technical Data
| Water production | 0.25 – 30 T/H |
|---|---|
| Conductivity | ≤ 1.3 μS/cm @ 25 °C (ChP requirement) |
| TOC | ≤ 500 ppb |
| Microbial limit | ≤ 100 cfu/mL |
| Material | SUS316L, Ra ≤ 0.4 μm inner surface |
| Sanitisation | Hot water 80–85 °C or ozone + UV |
| Documentation | P&ID, material / weld certs, IQ / OQ templates |
