Pure & Ultra-pure Water
Reverse Osmosis (RO) System
Single-stage and double-stage RO skids — the desalination core of almost every water treatment plant.
- Capacity
- 0.5 – 200 T/H
- Outlet Quality
- Desalination rate ≥ 98 %, conductivity ≤ 10 μS/cm
Reverse osmosis is a pressure-driven membrane separation process. Under pressures higher than the natural osmotic pressure, water molecules pass through a semi-permeable membrane while dissolved salts, organics, bacteria and viruses are rejected and carried away in the concentrate stream.

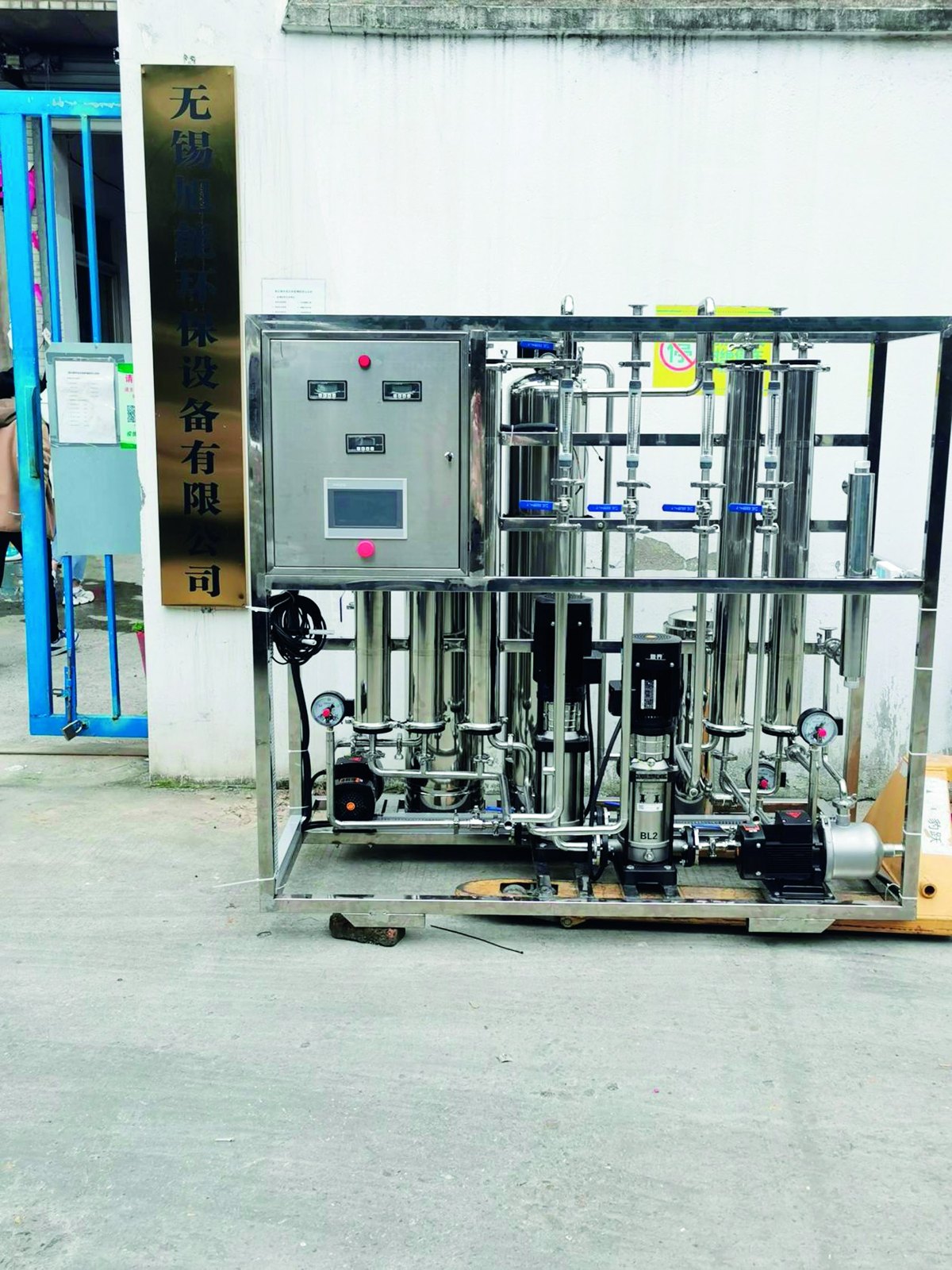

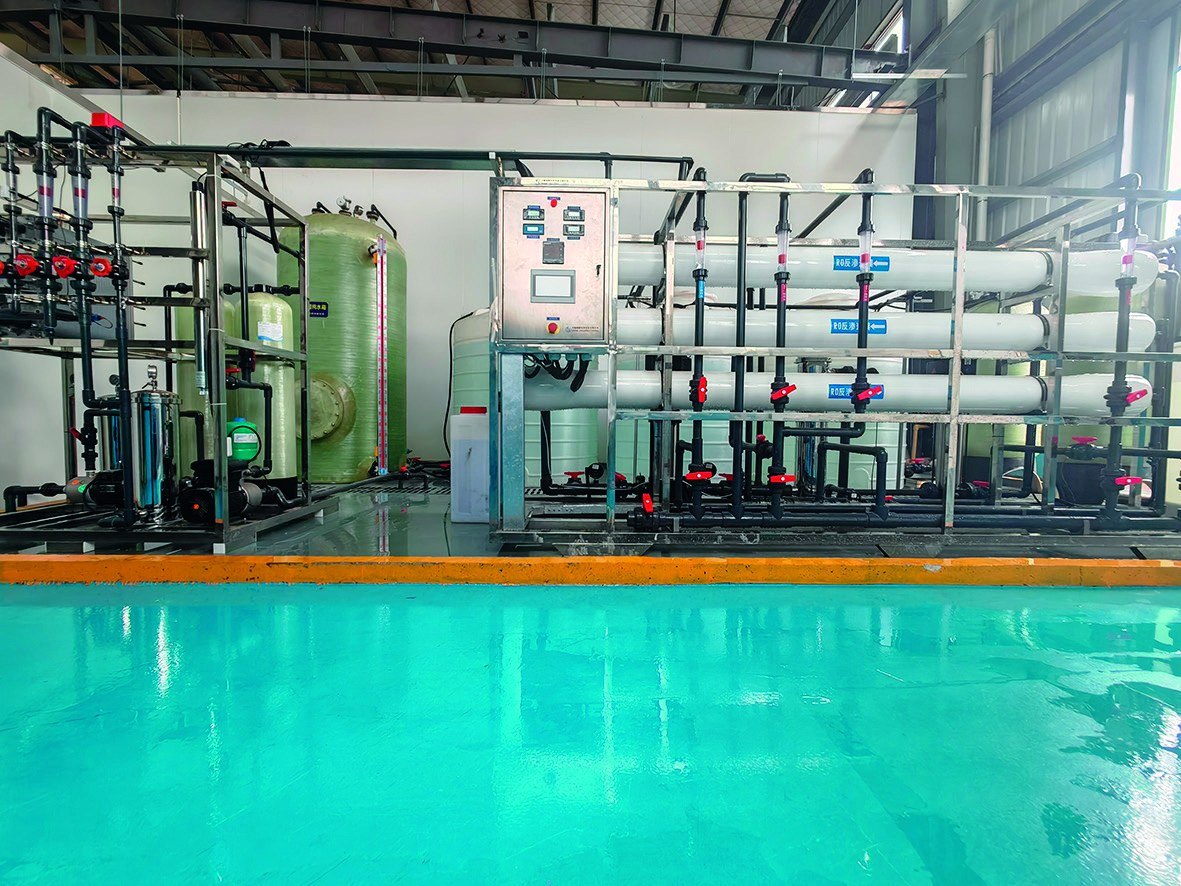

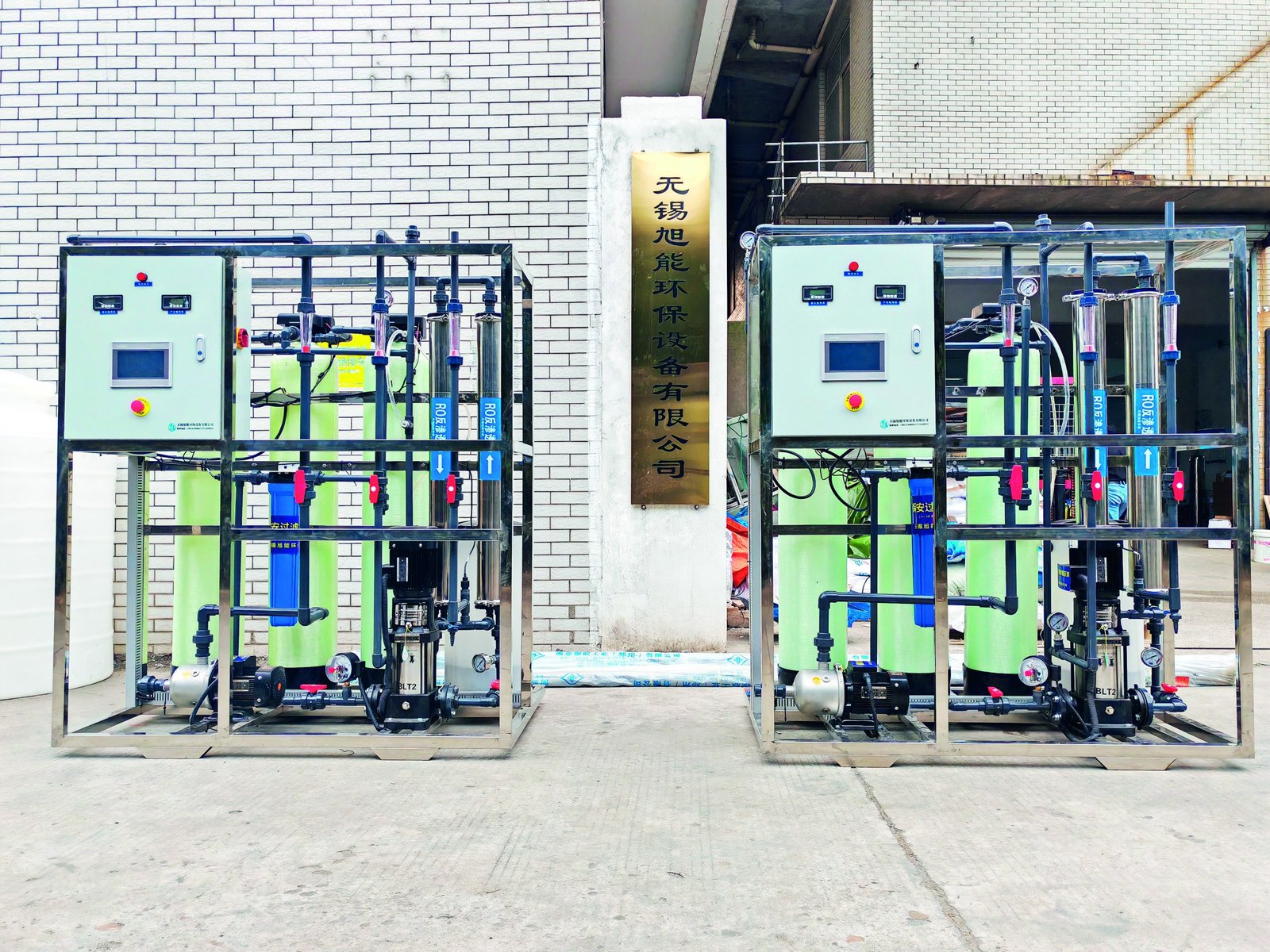

Our RO skids are built around brand-name 4040 / 8040 low-pressure composite membrane elements housed in FRP or stainless steel pressure vessels, with a vertical multistage high pressure pump, variable frequency drive, complete instrumentation and PLC control.
Configurations include single-stage, double-stage, one-pass-two-stage and brackish / seawater desalination arrangements, with concentrate recirculation to maximise recovery.
Key Features
Why This System Performs
Brand-name membranes
Industry-standard 8040 low-pressure composite elements with predictable performance and worldwide availability.
Energy-optimised pumping
Vertical multistage pumps with VFD control keep operating pressure at the minimum required for the target flux.
Automatic flushing & CIP
Timed low-pressure flushing after every shutdown, plus an optional integrated chemical cleaning circuit.
Full instrumentation
Inlet / outlet conductivity, pressure, flow and ORP monitoring with high-low pressure interlock protection.
Process
Typical Process Flow
- 01Raw water booster
- 02Quartz sand filter
- 03Activated carbon filter
- 04Antiscalant + reducing agent dosing
- 055 μm security filter
- 06High pressure pump (VFD)
- 07RO membrane array (1st pass)
- 08Optional 2nd pass RO
- 09Product water tank / concentrate discharge or reuse
Specifications
Technical Data
| Capacity | 0.5 – 200 T/H |
|---|---|
| Membrane element | 4040 / 8040 low-pressure composite polyamide |
| Vessel | FRP or SUS304 / 316L |
| Desalination rate | ≥ 98 %, ≥ 99 % with double stage |
| Recovery | 50 % – 85 % depending on raw water |
| Operating pressure | 0.8 – 1.6 MPa (brackish), up to 6.0 MPa (seawater) |
| Control | PLC + HMI, remote monitoring optional |
