Pure & Ultra-pure Water
Industrial Pure Water Equipment
Reverse-osmosis based pure water production for boilers, cleaning lines, coating and general industry.
- Capacity
- 0.25 – 100 T/H (customised)
- Outlet Quality
- Conductivity ≤ 10 μS/cm, desalination rate ≥ 98 %
Industrial pure water equipment removes suspended solids, colloids, organic matter, bacteria and dissolved salts from raw water through a combination of multi-media pre-treatment, precision filtration and reverse osmosis membrane separation, producing stable pure water for industrial production processes.

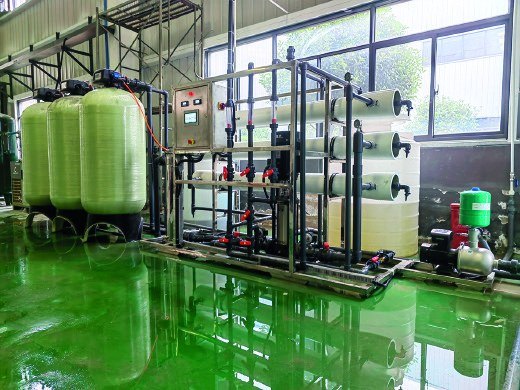

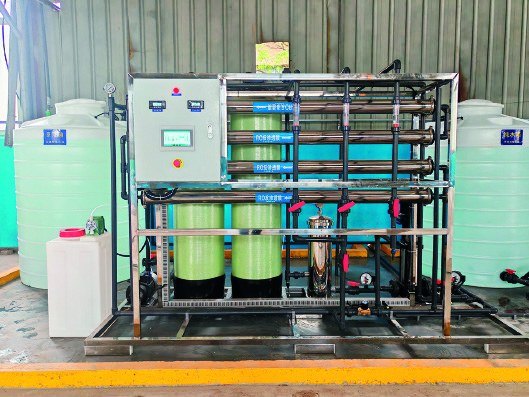

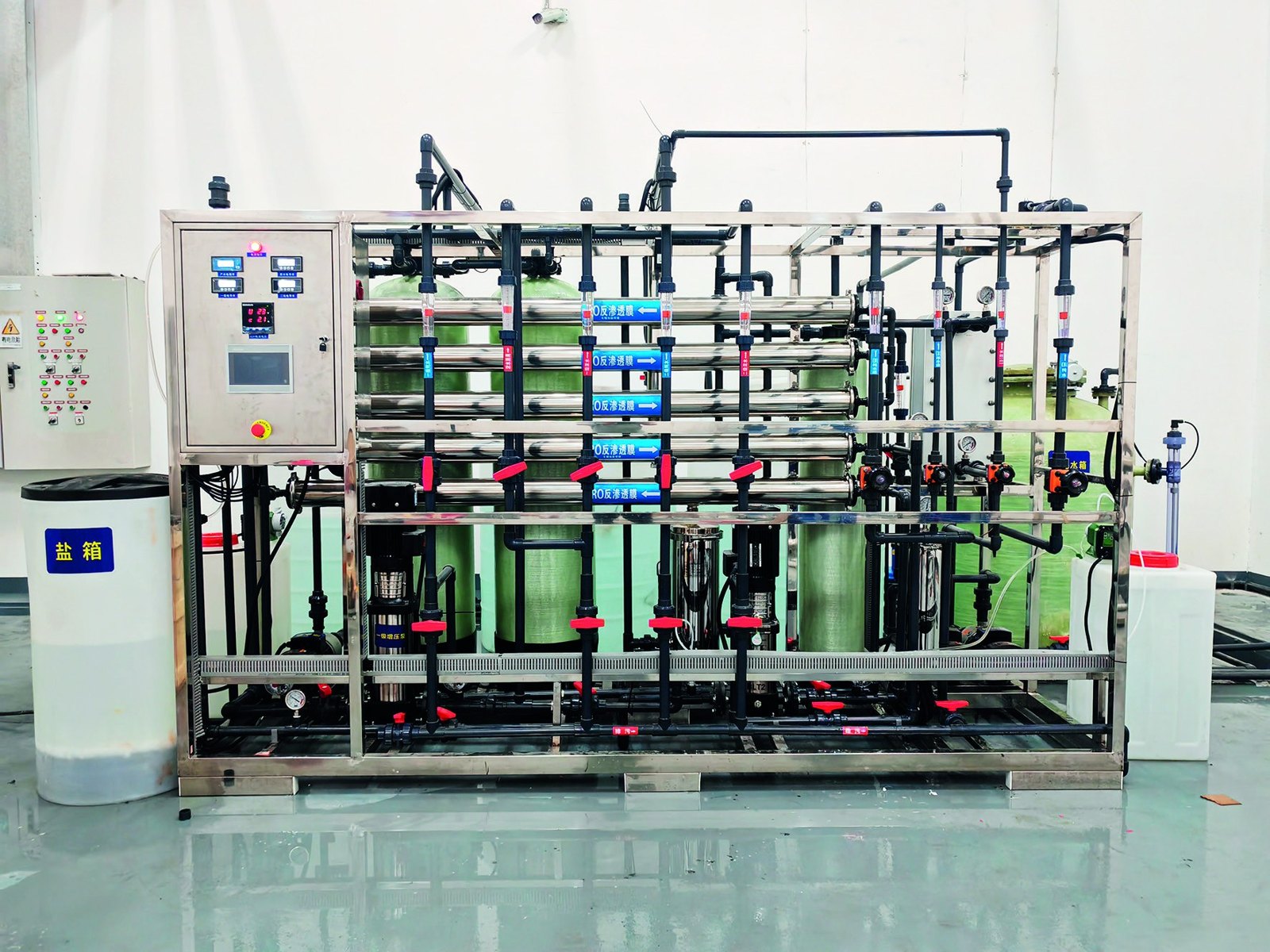

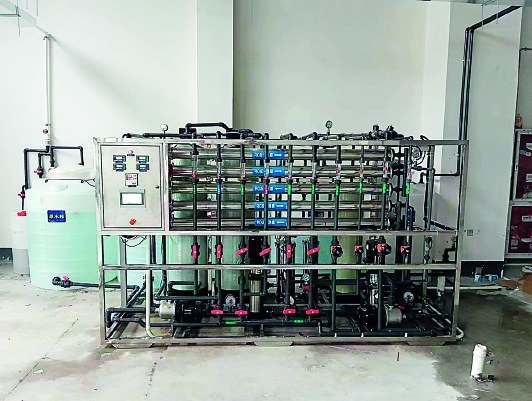

The whole system is skid-mounted with 304 or 316L stainless steel frames and UPVC / sanitary pipework. PLC control with a touch screen enables automatic water production, automatic membrane flushing, automatic start-stop by tank level and complete fault alarming, allowing unattended operation.
Capacity, configuration and material grade are fully customised according to your raw water analysis, target water quality and installation footprint. Single-stage, double-stage and RO + mixed-bed configurations are all available.
Key Features
Why This System Performs
High desalination efficiency
Brand-name low-pressure composite membrane elements deliver a desalination rate above 98 % with a system recovery of 70 %–85 %.
Fully automatic operation
PLC + HMI control handles start-up, flushing, standby and shutdown, with high/low pressure protection and online conductivity monitoring.
Corrosion-resistant construction
Stainless steel frames, FRP pressure vessels and food-grade pipework guarantee 15–20 years of service life.
Low running cost
Optimised hydraulic design and energy-saving pump group reduce power consumption; concentrate can be reused for cooling or cleaning.
Process
Typical Process Flow
- 01Raw water tank
- 02Raw water booster pump
- 03Multi-media quartz sand filter
- 04Activated carbon filter
- 05Water softener / scale inhibitor dosing
- 065 μm security filter
- 07High pressure pump
- 08Reverse osmosis membrane group
- 09Pure water tank
- 10UV sterilizer + delivery pump
Specifications
Technical Data
| Water production | 0.25 – 100 T/H, customised |
|---|---|
| Desalination rate | ≥ 98 % (first-stage RO) |
| Outlet conductivity | ≤ 10 μS/cm (single stage), ≤ 2 μS/cm (double stage) |
| Recovery rate | 70 % – 85 % |
| Operating pressure | 0.8 – 1.5 MPa |
| Control | PLC + 7" / 10" touch screen, fully automatic |
| Frame / pipework | SUS304 or SUS316L, UPVC option |
| Power supply | 220 V / 380 V / 415 V, 50 Hz or 60 Hz |
