Direct Drinking Water System
Central direct-drinking water plants and terminals for factories, schools, offices and communities.
- Capacity
- 0.25 – 50 T/H
- Outlet Quality
- Meets national drinking water hygiene standards
A direct drinking water system purifies municipal or well water to drinkable quality at a central plant, then distributes it through a dedicated sanitary circulating pipeline to drinking terminals across the site.
Because the loop circulates continuously with UV sterilisation, water at every terminal stays fresh — there is no stagnation, no bottled water logistics, and no secondary contamination.
The plant combines pre-filtration, activated carbon, softening, reverse osmosis (or ultrafiltration for mineral retention), mineral balancing and sterilisation, and each terminal can offer ambient, chilled and hot water.
Key Features
Why This System Performs
Central plant + terminals
One purification plant serves dozens of drinking terminals through a circulating sanitary loop.
Fresh at every tap
Continuous circulation plus UV in the loop prevents stagnation and bacterial regrowth.
Mineral options
UF retains natural minerals; RO with a mineral cartridge balances taste for pure water.
Cost vs bottled water
Removes bottled water purchase, storage and delivery costs entirely.
Process
Typical Process Flow
- 01Municipal / well water inlet

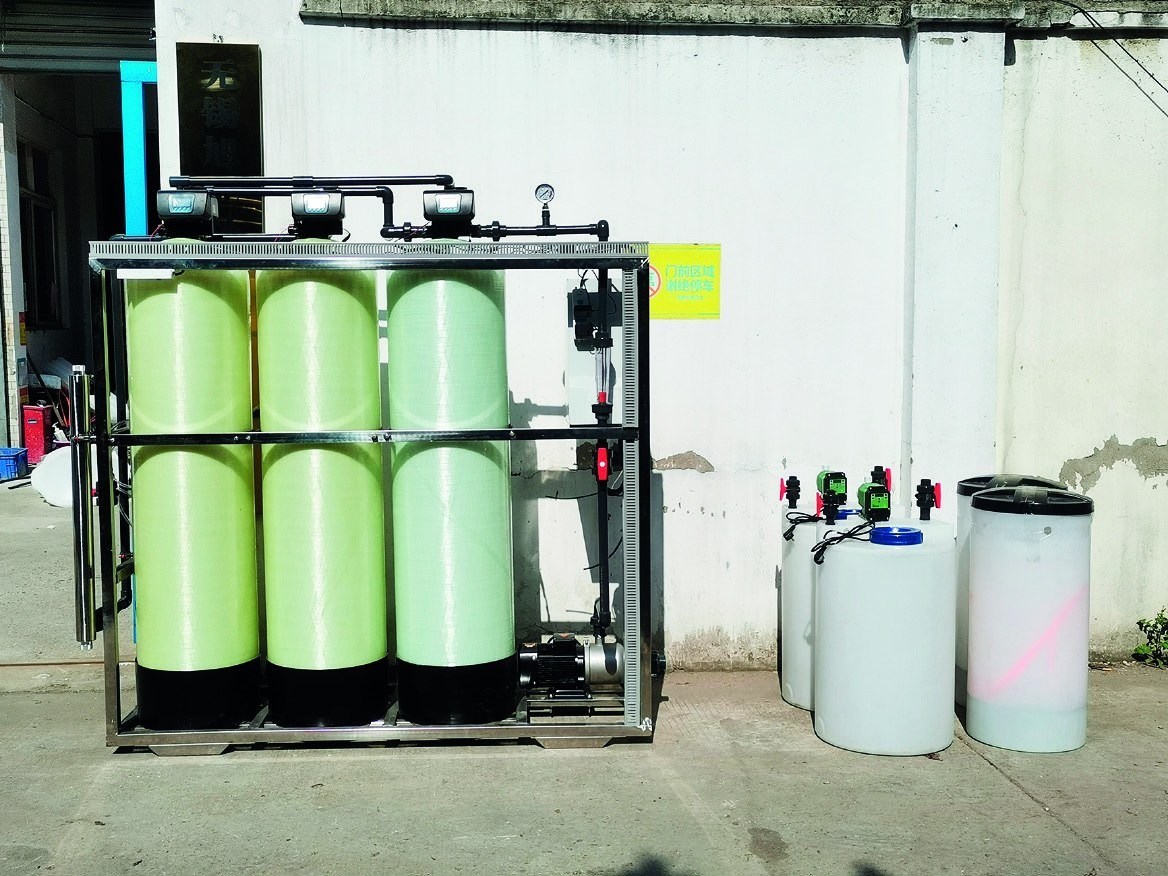

- 02Quartz sand + activated carbon filtration

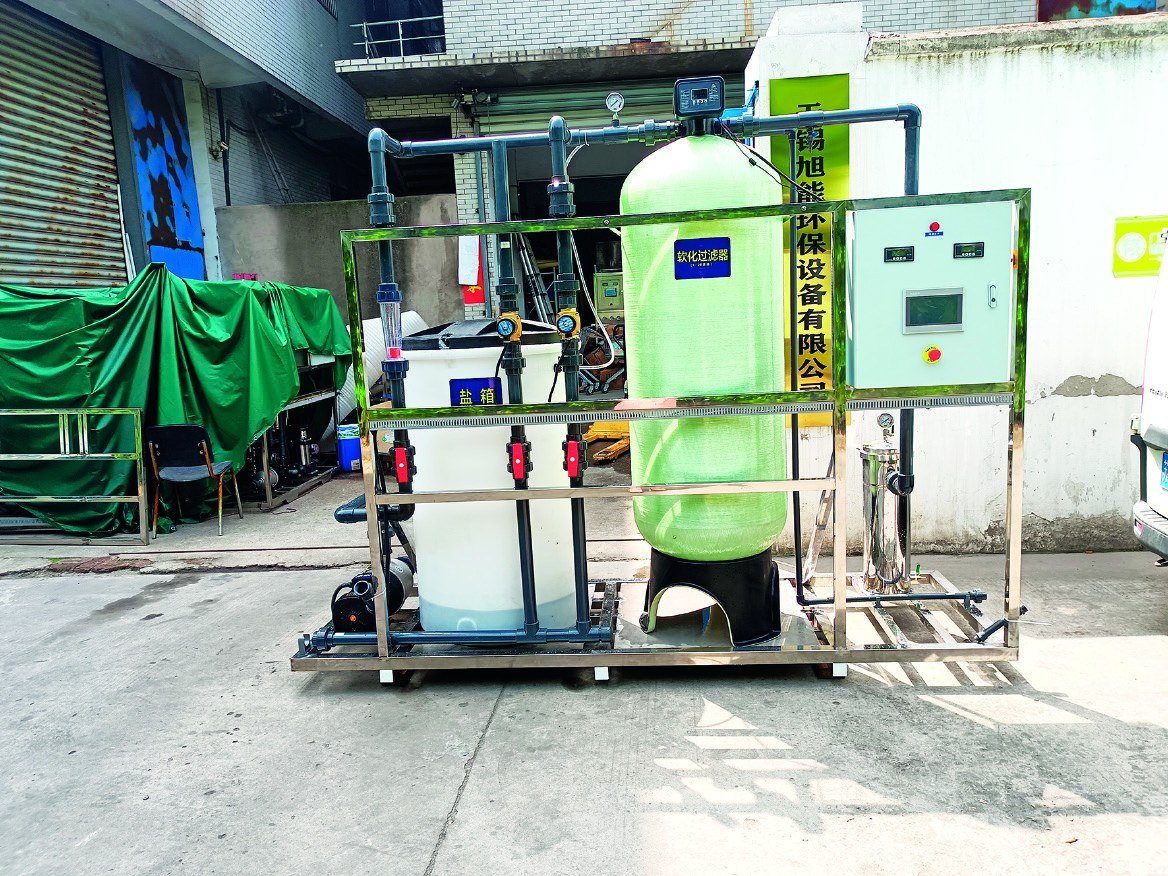

- 03Softener
- 04Security filter
- 05Reverse osmosis or ultrafiltration
- 06Mineral balancing cartridge (optional)
- 07Ozone / UV sterilisation
- 08Sanitary storage tank
- 09Circulating loop to drinking terminals (ambient / chilled / hot)
Specifications
Technical Data
| Capacity | 0.25 – 50 T/H |
|---|---|
| Loop material | SUS304 / SUS316L sanitary |
| Sterilisation | UV 254 nm + ozone option |
| Terminals | Ambient / chilled / 95 °C hot, 2–6 tap models |
| Standard | National drinking water hygiene standard |
| Control | Automatic level, flushing and alarm control |
