Wastewater & Water Reuse
Reclaimed Water Reuse System
Turn treated effluent into reusable process, cooling, flushing and irrigation water.
- Capacity
- 5 – 2,000 m³/day
- Outlet Quality
- GB/T 18920 / GB/T 19923 reclaimed water standards
A reclaimed water reuse system takes secondary treated effluent and upgrades it to a quality suitable for reuse — cooling tower make-up, toilet flushing, floor and vehicle washing, landscape irrigation, or even return to the production process.
The core is a combination of ultrafiltration and reverse osmosis with appropriate pre-treatment and disinfection. For high-salinity effluent, a two-stage RO or RO + evaporation arrangement moves the plant toward zero liquid discharge.
Reuse typically cuts fresh water purchase by 50 %–80 % and reduces the discharge fee at the same time, so the investment normally pays back within one to three years.
Key Features
Why This System Performs
50 %–80 % water saving
Most of the effluent is returned to service, cutting both intake cost and discharge volume.

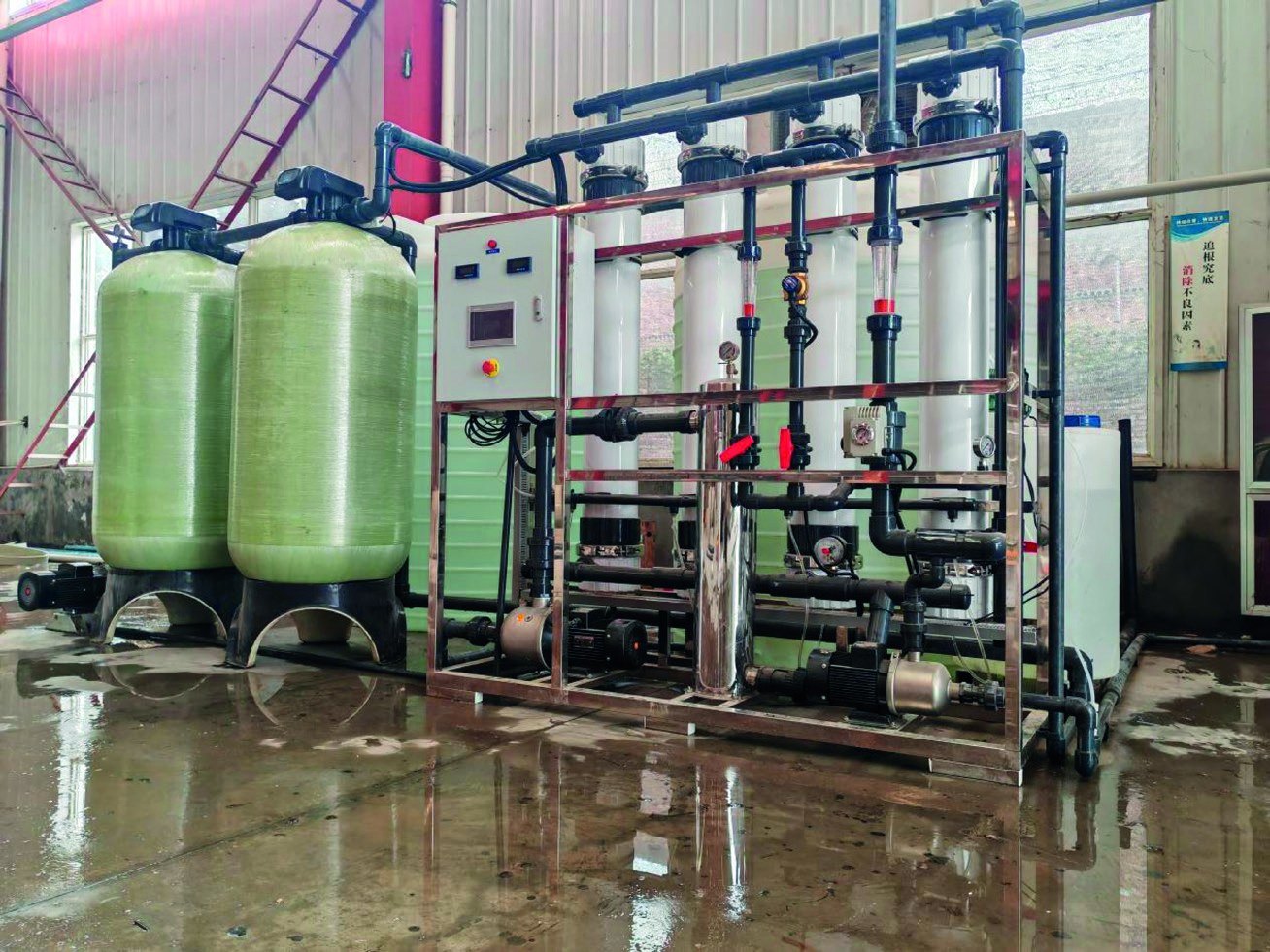

UF + RO double barrier
Ultrafiltration removes particles and microbes, RO removes dissolved salts and residual organics.
Toward zero liquid discharge
Optional high-recovery RO, evaporation and crystallisation stages for ZLD compliance.
Fast payback
Typical payback of 1–3 years from water purchase and discharge fee savings.
Process
Typical Process Flow
- 01Secondary effluent collection
- 02Coagulation and clarification
- 03Multi-media filtration
- 04Ultrafiltration
- 05Security filtration + antiscalant dosing
- 06Reverse osmosis
- 07Disinfection (NaClO / UV)
- 08Reclaimed water tank
- 09Distribution to reuse points / concentrate handling
Specifications
Technical Data
| Capacity | 5 – 2,000 m³/day |
|---|---|
| Reuse ratio | 50 % – 80 % of treated effluent |
| Product standard | GB/T 18920, GB/T 19923 |
| Turbidity | ≤ 0.5 NTU |
| Conductivity | ≤ 200 μS/cm after RO |
| Options | High recovery RO, evaporator, crystalliser (ZLD) |
